In comparison with its predecessors, the Tiger 6S has two 12.1-inch operating terminals with high pixel density resulting in even sharper resolution. Operation at the terminal with interactive buttons is even more intuitive and uses the same logic as tablets and smartphones.
In addition to the machine functions, two separate video streams can also be shown on the R-Touch display on the left A-pillar. The Tiger 6S has digital cameras as standard. The digital cameras provide much better image quality - for this greater data quantity, an additional Ethernet network has been integrated into the machine.

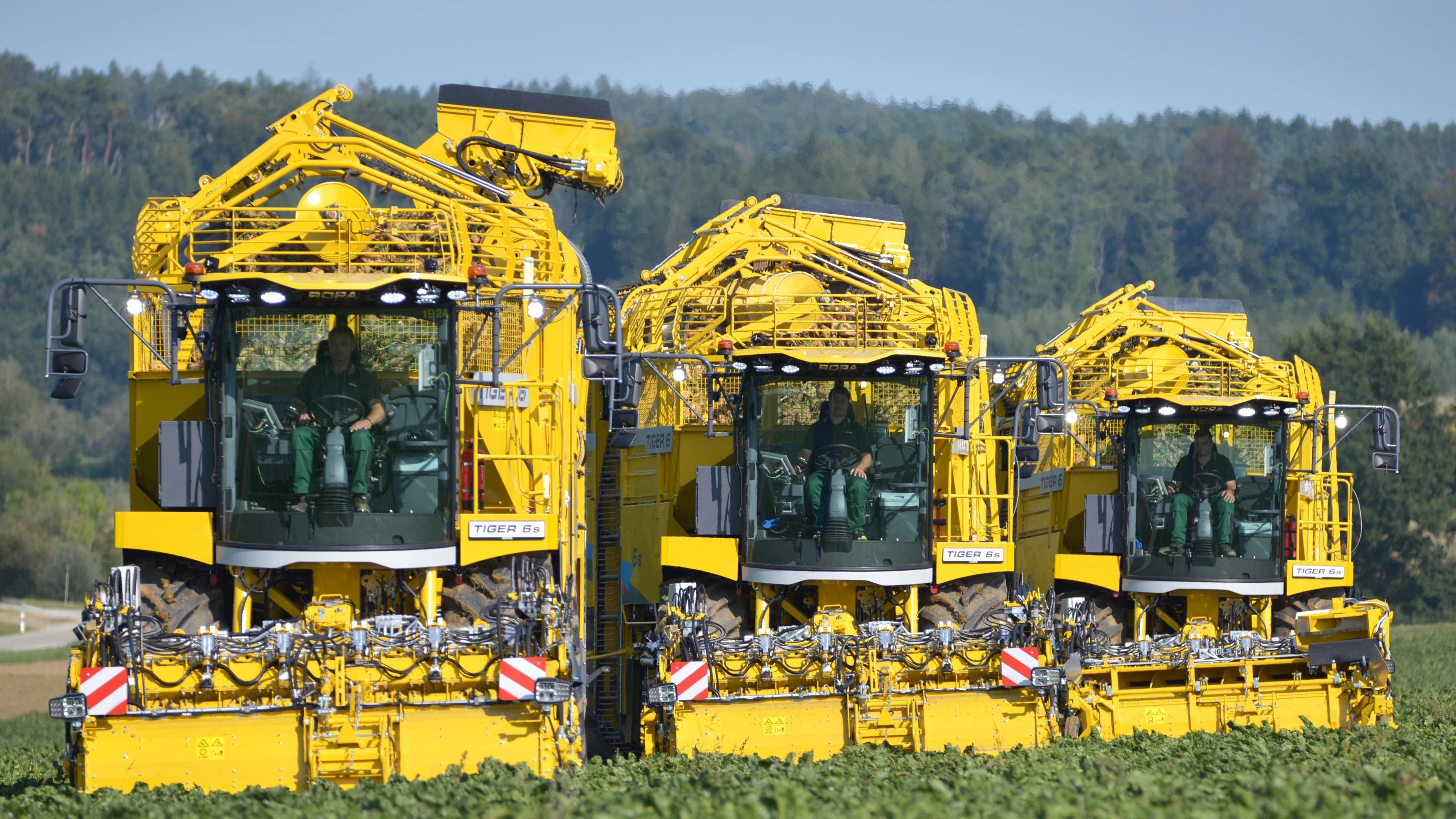

Experience the ROPA Tiger 6S as the world's most powerful sugar beet harvester in the 360° degree video from different angles. Climb into the cabin, look around the lifting unit, or follow the unloading of sugar beets and decide for yourself the perspective from which you want to see things.
Tip: Set the video quality to the highest 4K resolution!

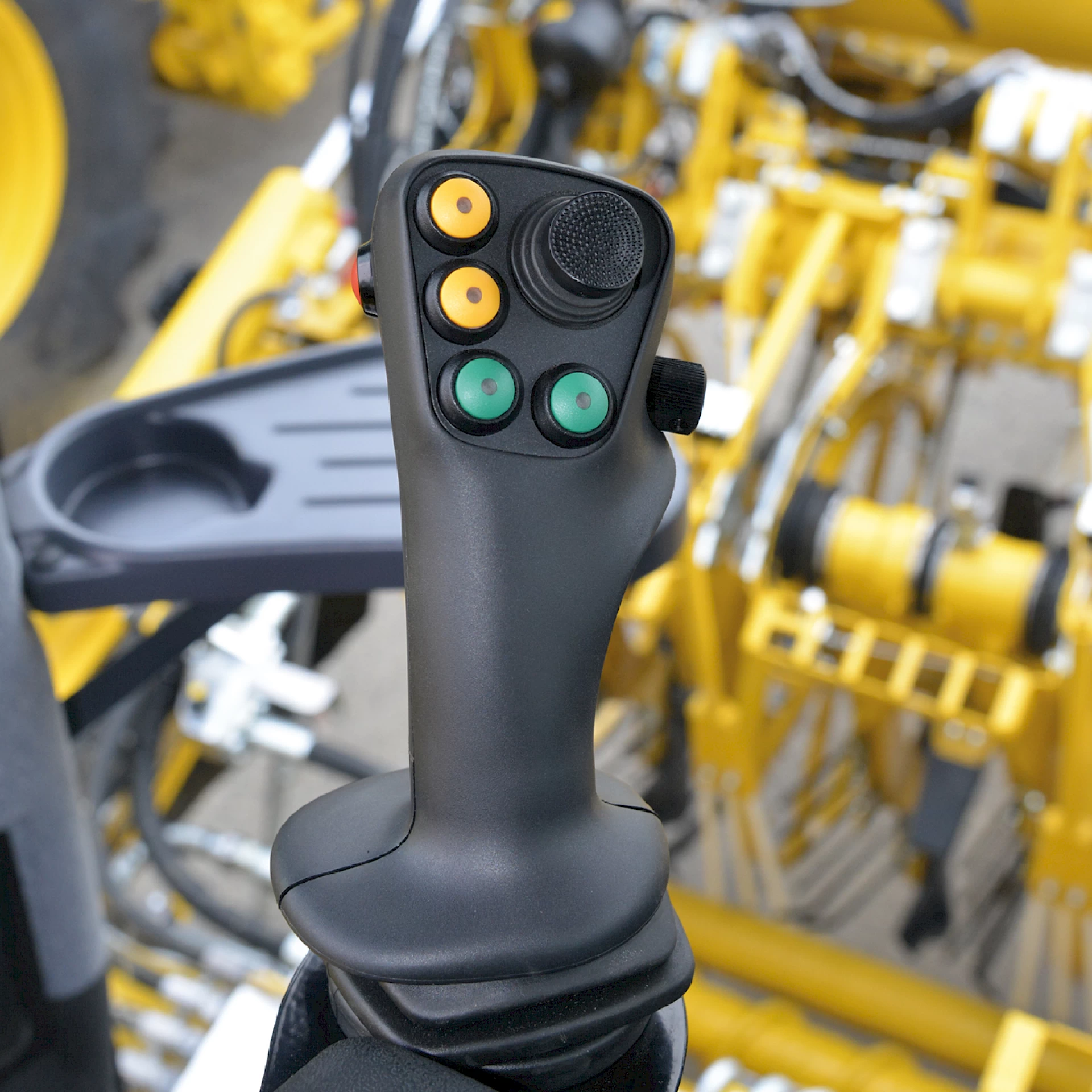

With the new ergonomic control element on the left armrest, the discharge conveyor and bunker emptying can be controlled more easily.
On the right multi-function joystick, three function keys are available for programming, for example for the large-area windshield wiper.

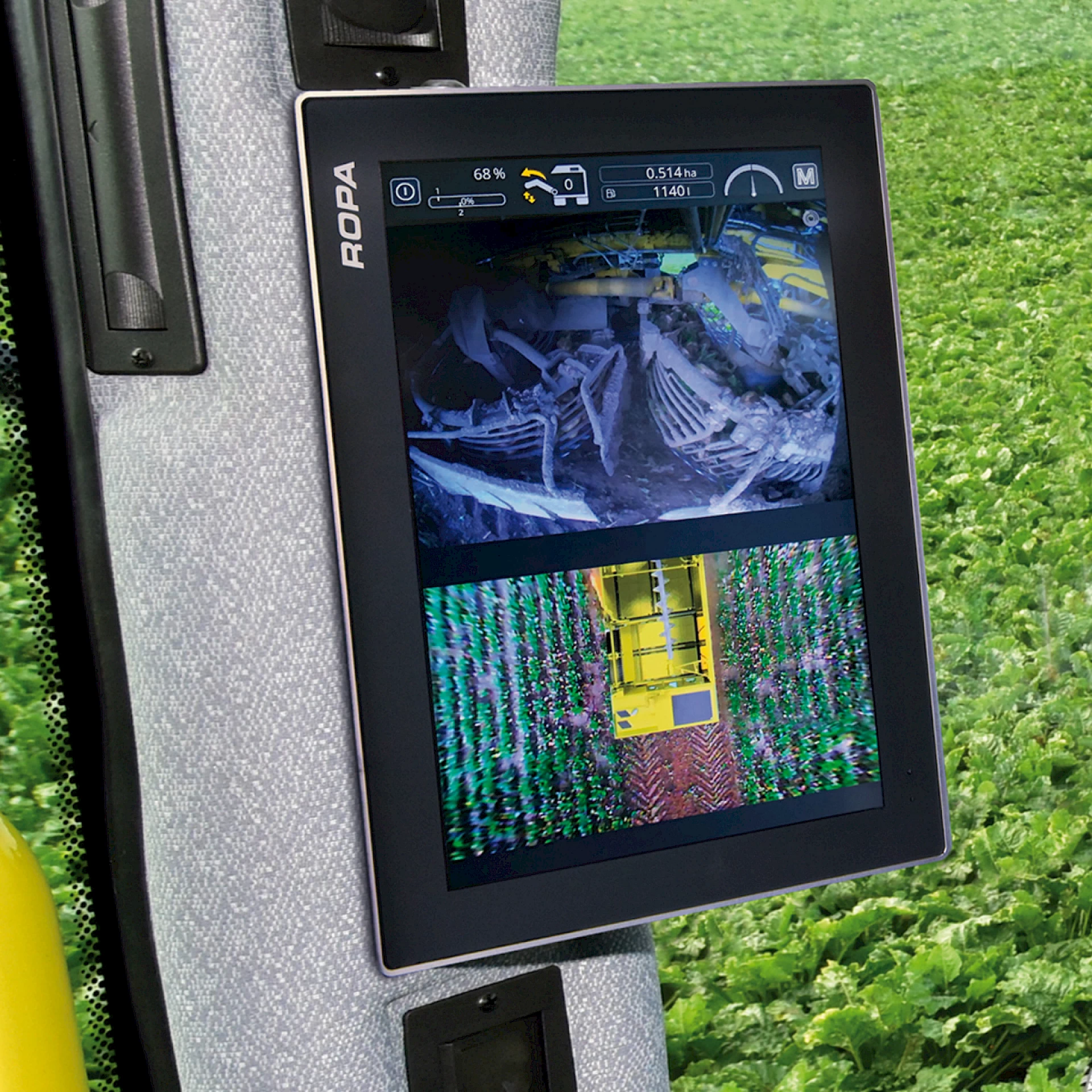

The relevant camera image is automatically displayed on the left R-Touch display while reversing or when unloading the bunker. The back part of the machine is displayed on the monitor in the bird's eye view. Obstacles are visible and collisions are avoided.
The ROPA Tiger 6S features a fully hydraulic suspension. Compared to the chassis on previous 3-axle beet harvesters (with the central axle fixed to the frame), the sway of the machine is reduced by one third! Hydraulic cylinders are connected at the front and rear axles on each side of the machine, so uneven ground at one wheel only affects the frame by 33 percent compared to the previous system. Thanks to the reduction of the chassis swing, the row and depth control are improved simultaneously, as the frame is averaged to the position of three axles.

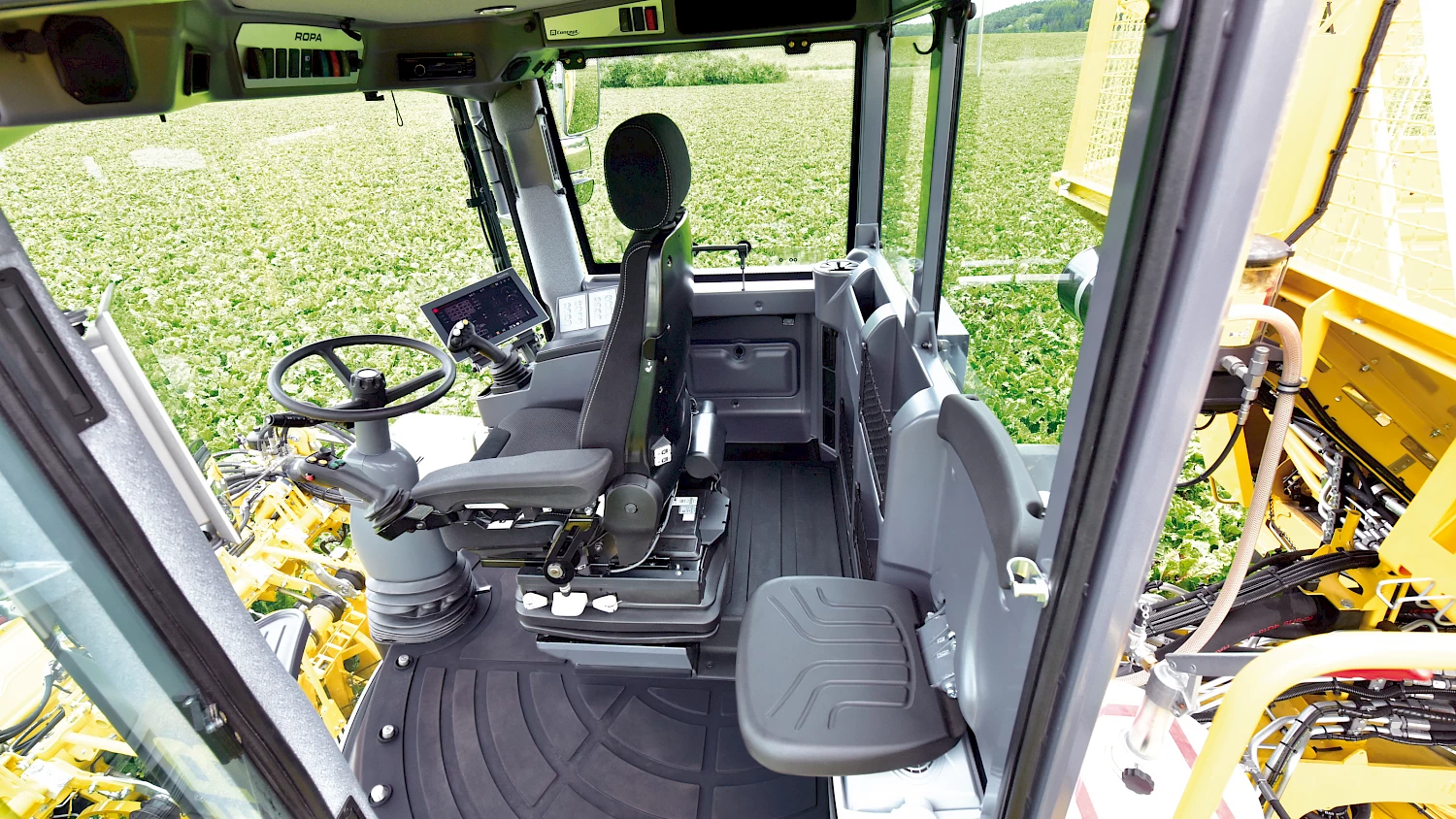

Generously dimensioned shelves, storage compartments and plenty of space around the driver. A cooler and the integrated seat ventilation for hot days and seat heater for colder weather are standard equipment.

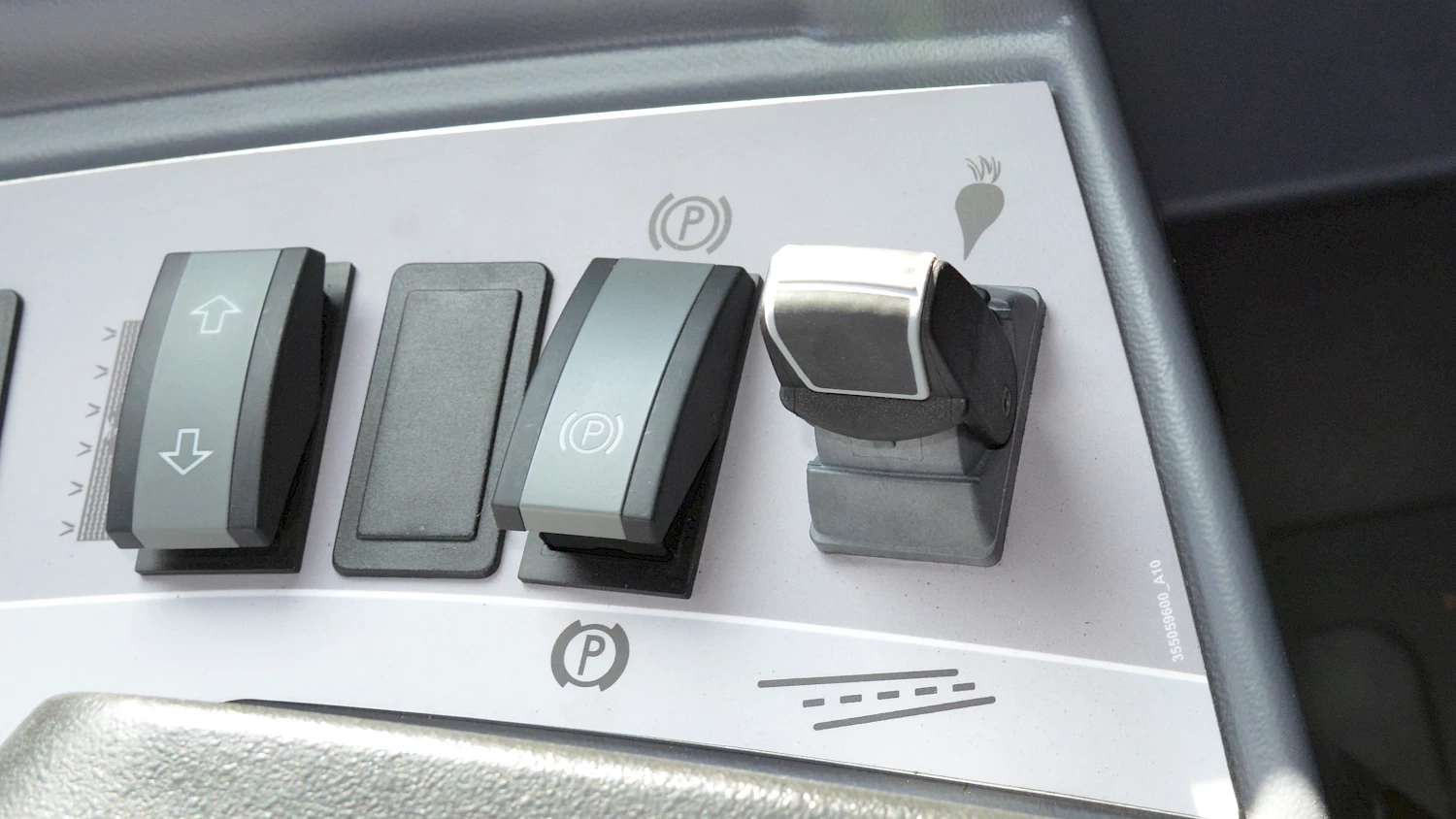

The ROPA Tiger 6S "transforms" automatically from road drive mode to field mode at the push of a button. Unloading conveyor, one meter wide ring elevator, bunker auger and other groups fold one by one, in some cases simultaneously. The sensor-controlled monitoring systems prevent operating errors and collisions. The entire folding process with simultaneous activation of all functions takes a very short time.

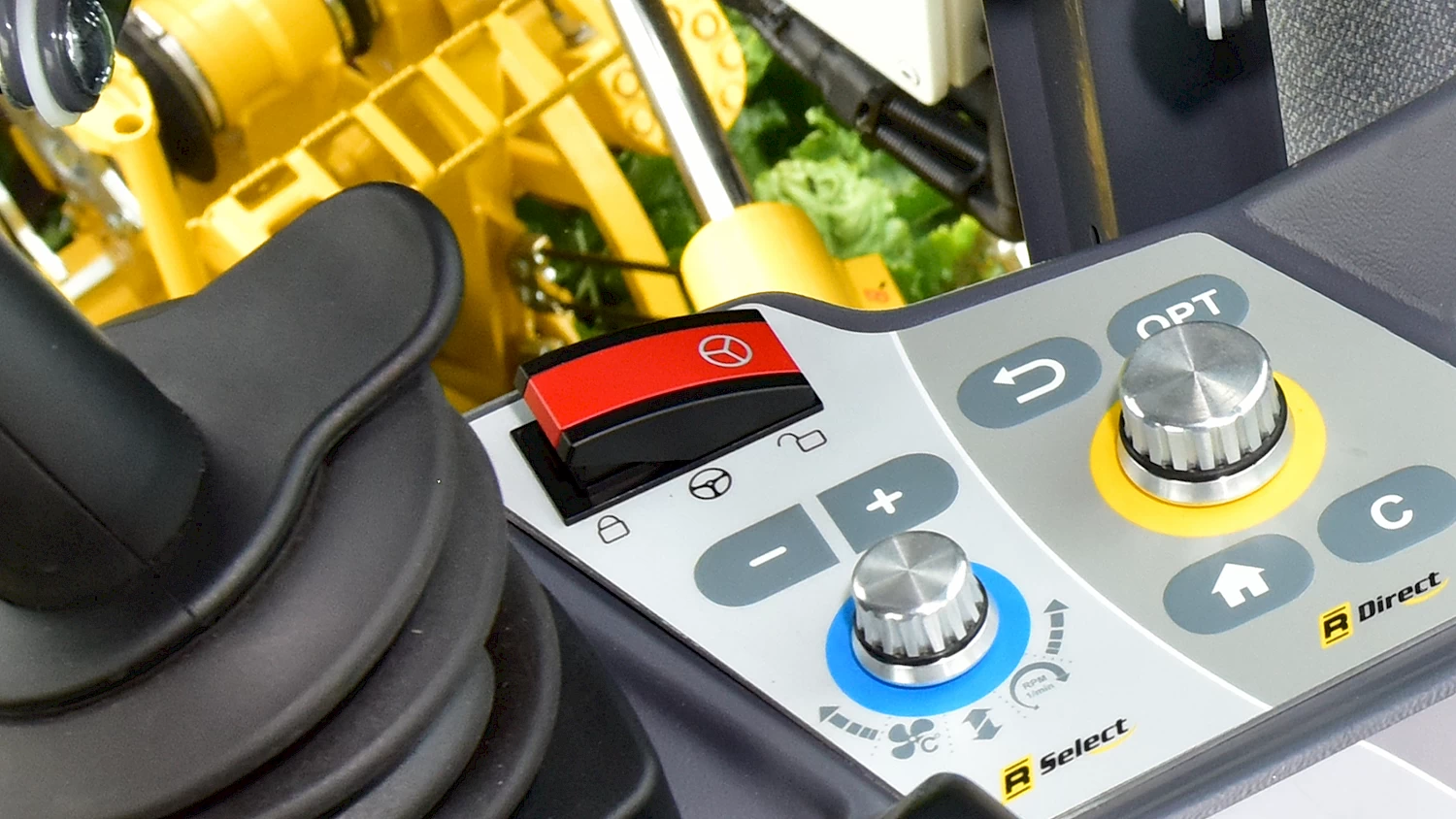

The new "intelligent main steering switch" automatically synchronizes the articulation and front-axle steering for travel on the road as well as straight-ahead positioning of the rear wheels.

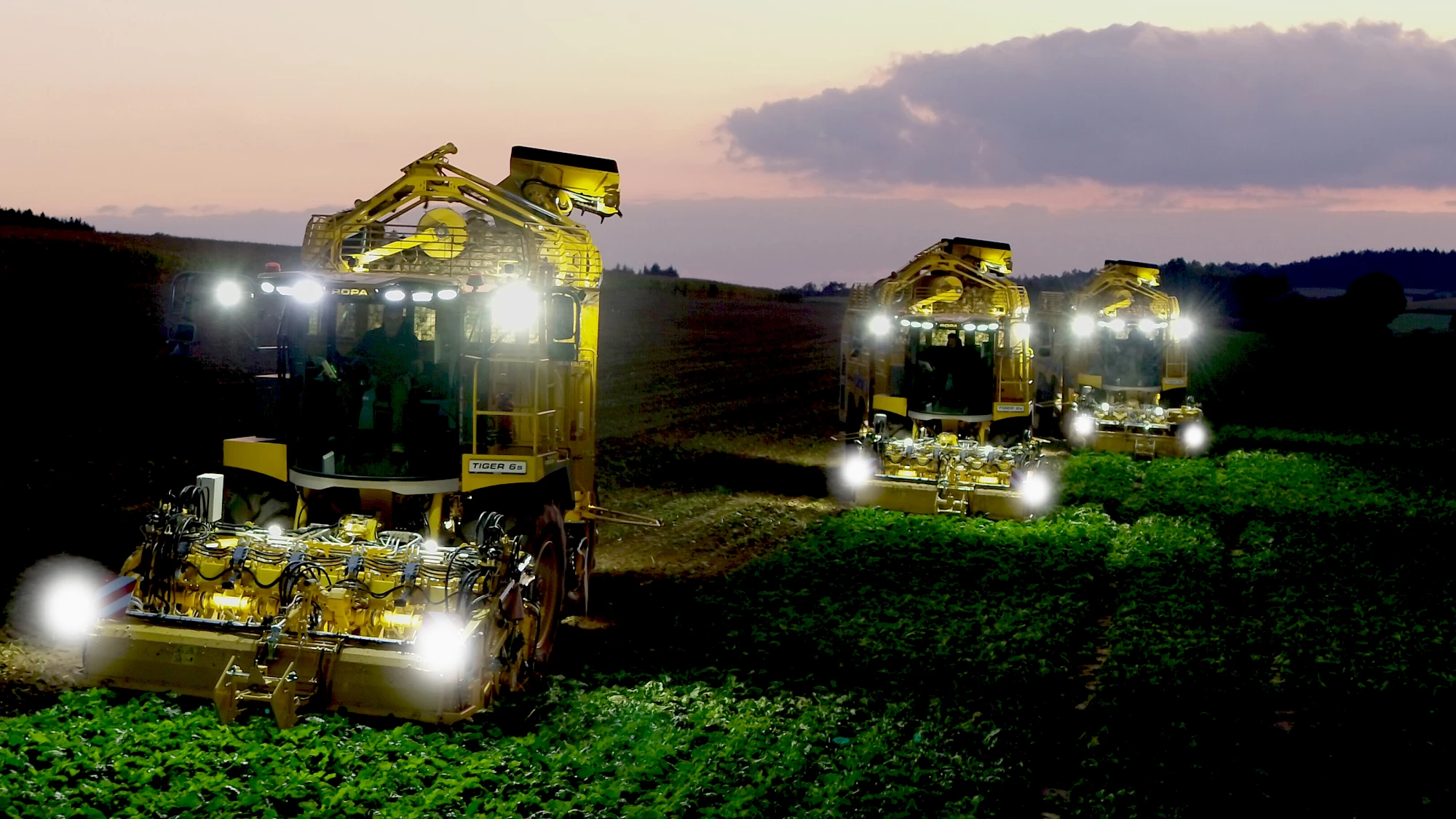

The Tiger 6S is fully equipped with LED spotlights with the combination of working spotlights and headlights providing outstanding illumination.

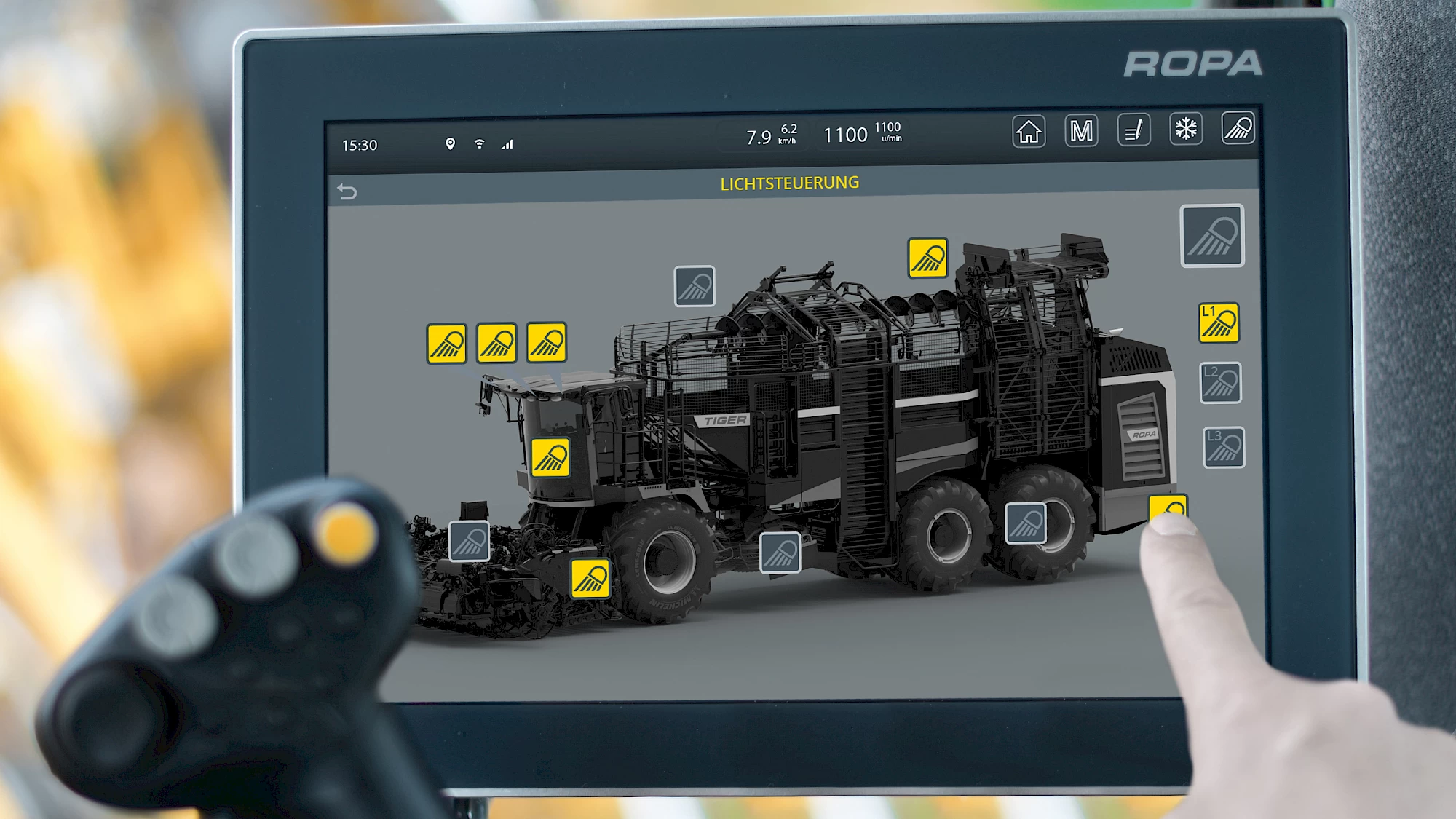

Individual or all working lights can be switched on with a finger on the touch terminal.
One touch of the finger is enough to back up and recall three different lighting programs.
